9001SKR16H13

Price on Request

Min Order Qty 1

  • Product not available

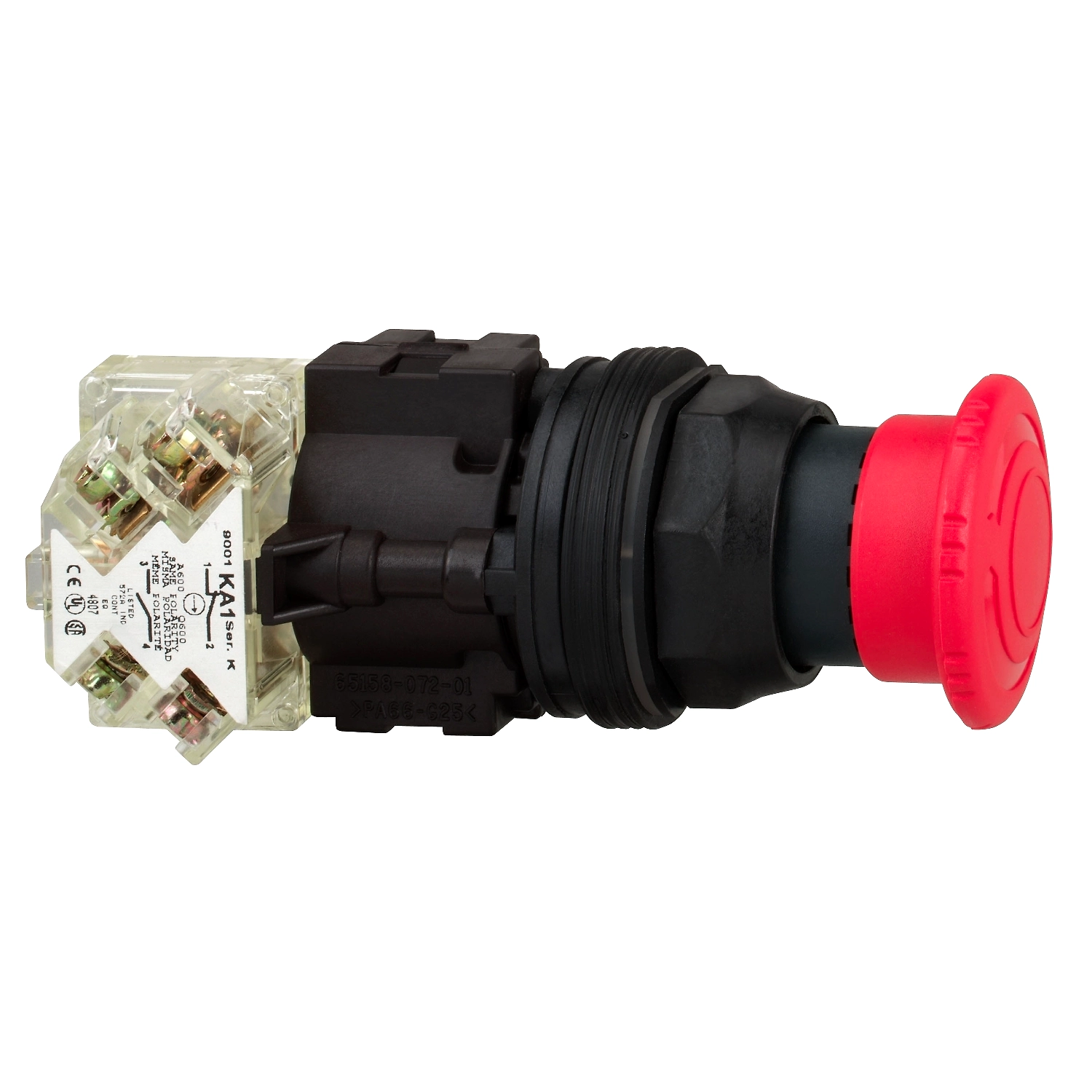

30mm SK TTR Mushroom

MAVEN AUTOMATION

Ahmedabad, India

Business Operations: Manufacturer, Merchant, Service Provider

Contact us for


By clicking on ‘Send Trade Enquiry’, you agree to our terms & condition and user policies

Main
range of product
Harmony 9001SK

product or component type
Emergency stop push-button

device short name
9001SK

type of operator
Turn to release trigger action

operator profile
Red mushroom Ø 40 mm, unmarked

Complementary
bezel material
Plastic

mounting diameter
30 mm

CAD overall width
40 mm

CAD overall height
40 mm

CAD overall depth
116 mm

net weight
0.141 kg

operating position
Any position

shape of signaling unit head
Round

operator position information
2 positions

contacts type and composition
1 NC + 1 NO

mechanical durability
5000000 cycles

connections - terminals
Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² conforming to EN/IEC 60947-1

tightening torque
0.8 N.m conforming to EN/IEC 60947-1

shape of screw head
Cross slotted

contacts material
Silver alloy contacts

short-circuit protection
10 A cartridge fuse conforming to EN/IEC 60947-5-1

[Ui] rated insulation voltage
250 V (pollution degree 3) conforming to EN/IEC 60947-1

[Uimp] rated impulse withstand voltage
EN/IEC 60947-1 2.5 kV

[Ie] rated operational current
3 A at 240 V, AC-15, A600-Q600 conforming to NEMA
0.55 A at 125 V, DC-13, A600-Q600 conforming to NEMA

[Icm] rated short-circuit making capacity
12 kA at 120 V AC-15, 7200 VA
0.1 kA at 600 V DC-13
0.27 kA at 250 V DC-13
0.55 kA at 125 V DC-13

rated breaking capacity
3 kA at 240 V AC-15, 720 VA
6 kA at 120 V AC-15, 720 VA
1.2 kA at 600 V AC-15, 720 VA
1.5 kA at 480 V AC-15, 720 VA
0.1 kA at 600 V DC-13
0.27 kA at 250 V DC-13
0.55 kA at 125 V DC-13

compatibility code
9001SK

device presentation
Complete product

Environment
protective treatment
TC

ambient air temperature for storage
-40…70 Â°C

ambient air temperature for operation
-25…70 Â°C

overvoltage category
Class II conforming to IEC 61140

IP degree of protection
IP66 conforming to IEC 60529

NEMA degree of protection
NEMA 1
NEMA 12
NEMA 13
NEMA 2
NEMA 3
NEMA 3R
NEMA 4
NEMA 4X

standards
EN/IEC 60204-1, for emergency stop devices if used with emergency stop legend plate type 9001KN
EN/ISO 13850, for emergency stop devices if used with emergency stop legend plate type 9001KN
EN/IEC 60947-5-1
EN/IEC 60947-1
EN/IEC 60947-5-4
EN/IEC 60947-5-5
JIS C 4520
JIS C 852
UL 508
CSA C22.2 No 14

product certifications
UL 508
NEMA

vibration resistance
7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

shock resistance
50 gn conforming to IEC 60068-2-27

Packing Units
Unit Type of Package 1
PCE

Number of Units in Package 1
1

Package 1 Weight
117.934 g

Package 1 Height
5.842 cm

Package 1 width
5.08 cm

Package 1 Length
11.43 cm

Offer Sustainability
Sustainable offer status
Green Premium product

REACh Regulation
REACh free of SVHC
Yes

EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration

Toxic heavy metal free
Yes

Mercury free
Yes

RoHS exemption information
China RoHS Regulation
Environmental Disclosure
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty
18 months
