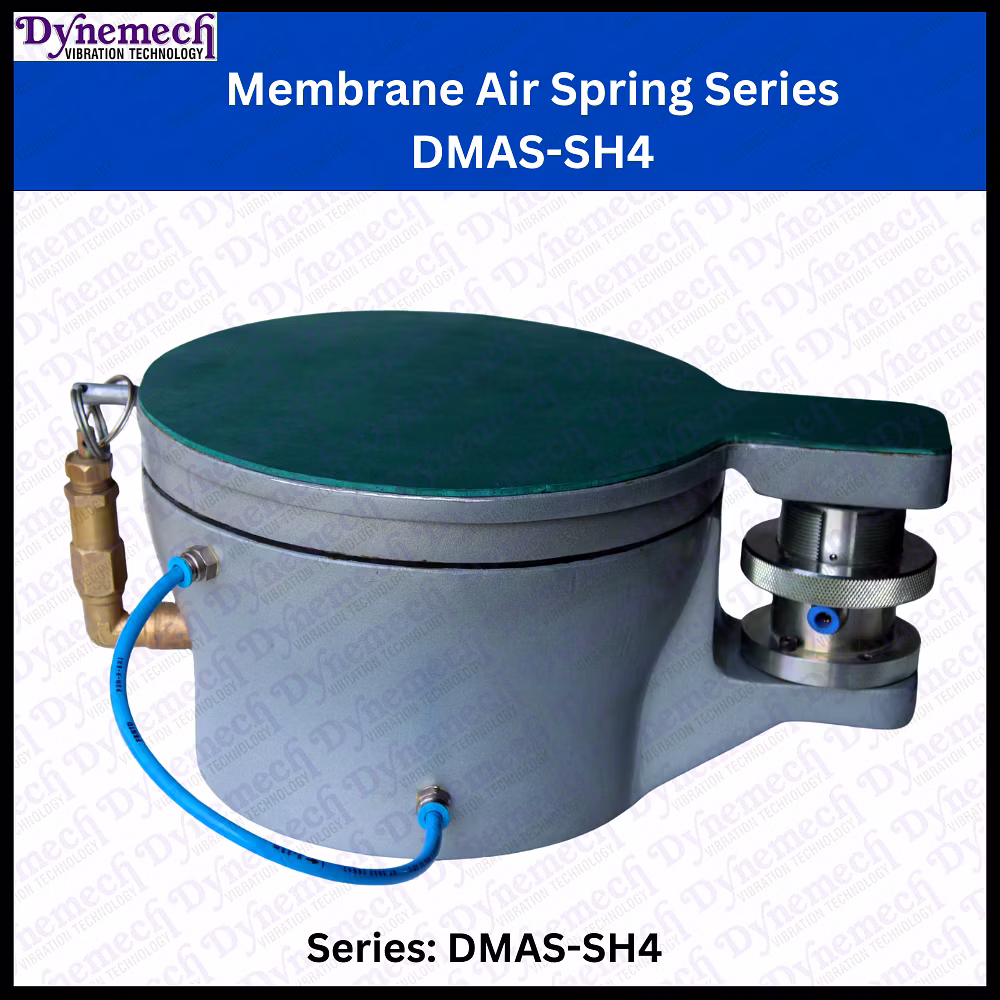

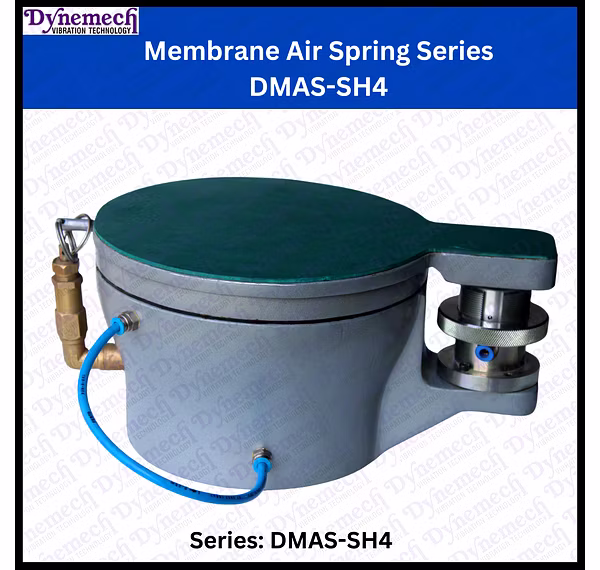

Dynemech DMAS-SH4 system consists of three master pneumatic isolators for 3-point precision levelling. Each pneumatic damping isolator consists of a self-levelling plunger mechanism. Which is the load sensing, and heigh-controlling element. The system is supplied with pressure regulator, distributor, Clean dry air is required to be supplied to the system. The DMAS-SH4 is lightweight aluminium body. The inner chamber is split into two parts i.e. load volume and damping volume. damping up to 20% can be adjusted using external valve manually. A thin reinforced elastomeric diaphragm supports the load. A safety valve protects diaphragm from over inflation. The final precise levelling of the system can be done using levelling nut provided on the plunger mechanism.

Model:DMAS-SH4

Dia: 110(mm) To 250(mm)

Height: 102(mm) To 110(mm)

Length: 190(mm) To 330(mm)

Load Capacity at 4 bar: 120(Kg) To 1400(Kg)

Load Capacity at 6 bar: 180(Kg) To 2100(Kg)

Self Levelling Repeatablity: ±0.015(mm)

Natural Frequency Vertical(Hz): 1.5-2.0(Hz)

4 Nos. weight: 45 Kg

4 Nos. of Boxes: 1

Delivery Time: 7 To 8 Days

4 Nos. Box Size: 21"x21"x10"

Temperature: -20°C To +70°C

Price Range Min: Rs. 87000/-

each Price Range Max: Rs. 94000/- each
