Dynemech DLT Series Antivibration mountings are used in the machines which must be anchored to the floor along with levelling and vibration reduction. Bolts with thru holes are provided in the machine foot and anchor bolt passes from the machine foot, mount and anchored in the floor nut. An insulating disc is provided between the nut and the machine foot to prevent vibration from transmitting in the floor via the bolt.
https://vibrationmountsindia.com/
Contact us for

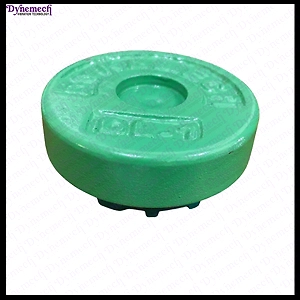

Dynemech DLT Series Antivibration mountings are used in the machines which must be anchored to the floor along with levelling and vibration reduction. Bolts with thru holes are provided in the machine foot and anchor bolt passes from the machine foot, mount and anchored in the floor nut. An insulating disc is provided between the nut and the machine foot to prevent vibration from transmitting in the floor via the bolt. The dimple and the thru hole in the mount are provide as per the bolt specifications of the machine.
Application: Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Size :Dia:276 mm, Height:43mm,
Load Capacity (Kg.):4200 Kg/pc
Bolt Size:M24x300mm(Anchored Set) Natural Frequency (Hz):18
Coeff. of Friction:0.9
Working Temp Range °C:-16 to 90 Through
hole:22mm
