Min Order Qty 1
Product not available
Ahmedabad, India
Business Operations: Manufacturer, Merchant, Service Provider
Contact us for
| range of product |

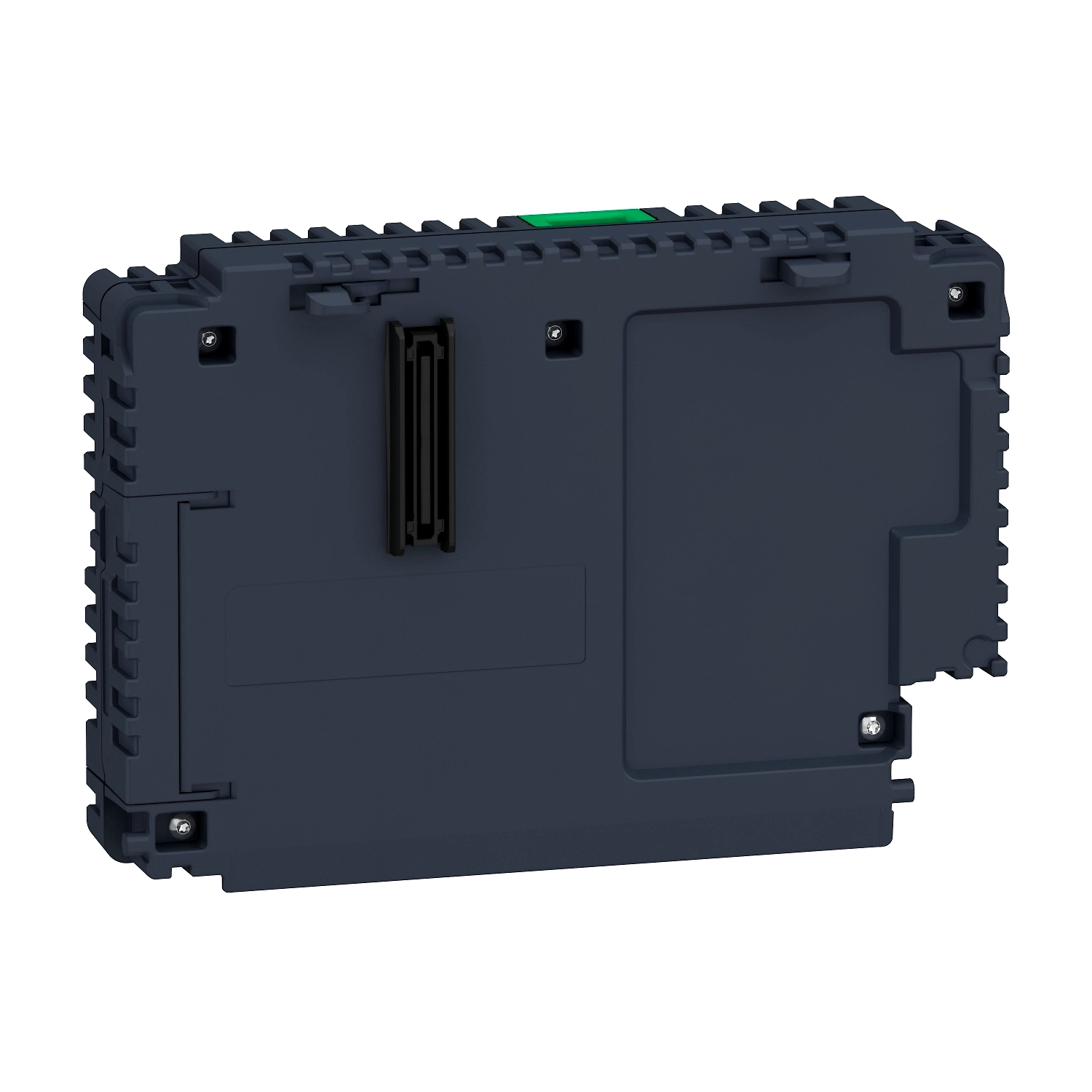

Harmony GTU
|
|
|---|---|---|
| product or component type |
Base unit
|
|
| device short name |
Premium Box
|
|
| operating system |
Harmony
|
|
| software package |
Vijeo Designer run time
|
| range compatibility |
Harmony GTU
|
|
|---|---|---|
| processor name |
CPU RISC 600 MHz
|
|
| data storage equipment |
1 GB SD card
|
|
| port Ethernet |
10BASE-T/100BASE-TX/1000BASE-T
|
|
| memory description |
256 MB RAM internal (2 x 13 mm board)
512 kB NVRAM backup memory |
|
| type of cooling |
Natural convection
|
|
| integrated connection type |
Ethernet TCP/IP with 2 RJ45
COM1 serial link RJ45 RS485, transmission rate: 110...115200 bit/s COM1 serial link RJ45 RS485, transmission rate: 187.5 kbit/s COM2 serial link SUB-D 9 RS232C/RS422/RS485, transmission rate: 110...115200 bit/s COM2 serial link SUB-D 9 RS232C/RS422/RS485, transmission rate: 187.5 kbit/s Auxiliary port terminal block Expansion unit fieldbus card USB 2.0 port with 2 USB type A USB 2.0 port mini B USB |
|
| communication port protocol |
Modbus
Modbus TCP/IP Uni-Telway |
|
| [Us] rated supply voltage |
12...24 V DC power supply
|
|
| depth |
45 mm
|
|
| height |
131 mm
|
|
| width |
188 mm
|
|
| net weight |
0.9 kg
|
|
| number of slots available for expansion |
2 slot(s) for SD card
|
| standards |
CSA C22.2 No 142
ANSI/ISA 12-12-01 UL 508 Class I division 2 CSA C22.2 No 213 IEC 61132-2 |
|
|---|---|---|
| product certifications |
CE
CULus ATEX IEC-Ex RCM GL KC CUL EAC ABS BV CCS DNV LR RINA |
|
| pollution degree |
2 conforming to EN 61131-2 Ed.3
|
|
| electromagnetic compatibility |
Electrostatic discharge immunity test conforming to EN/IEC 61000-4-2 level 3
|
|
| ambient air temperature for storage |
-20…60 °C
|
|
| relative humidity |
10…90 % non-condensing
|
|
| ambient air temperature for operation |
0…60 °C
|
|
| operating altitude |
2000 m
|
|
| vibration resistance |
3.5 mm constant amplitude (f = 5…9 Hz) conforming to EN/IEC 61131-2
9.8 m/s² (f = 9…150 Hz) conforming to EN/IEC 61131-2 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
1.217 kg
|
|
| Package 1 Height |
13.5 cm
|
|
| Package 1 width |
21 cm
|
|
| Package 1 Length |
26 cm
|
|
| Unit Type of Package 2 |
P12
|
|
| Number of Units in Package 2 |
64
|
|
| Package 2 Weight |
89 kg
|
|
| Package 2 Height |
131 cm
|
|
| Package 2 width |
80 cm
|
|
| Package 2 Length |
120 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
