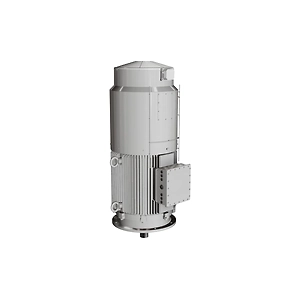

XSD Ultra 841 IEC technology meets or exceeds IE3/NEMA Premium nominal efficiencies and exceeds all IEC/NEMA Premium minimum guaranteed efficiencies. Each motor comes with its own test report demonstrating performance compliant with the IEEE 841 specification, but with IEC construction and designs.

A five-year warranty comes standard with every XSD Ultra 841 IEC motor (60 months operational/66 months maximum from shipment).

Overall vibration is 1.4 mm/sec (0.55 inches per second) vs 0.08 inches (0.06 for 8 pole) per second per IEEE 841. This helps to extend the life of the motor and the connected equipment.

Total shaft runout is 0.025 mm (0.001�) for shaft diameters up to 41 mm and 0.038 mm (0.0015�) for shaft diameters greater than 41 mm for ball bearing machines.

GEGARD insulation systems feature Class H insulation materials. This system increases motor protection against IGBT drive voltage spikes which exceed NEMA MG1-31 standards.

Technical Scope:

• 0.55-220 kW, 750-3000 / 900-3600 RPM
• 200, 400, 400/690, 690V / 50 Hz
• 230/460, 460, 575, 690V / 60 Hz
• TEFC (IP55)
• Frame size: 90S-280H
• IEC, IEEE 841, IEEE 45, ATEX, and IEC Exn
• Zone II, ABS
