Granite base of size L 650 X B 900 X T 767 mm

60 mm Tubular Structure with wrap around construction.

Front joystick panel laser cut with top rim and Z-plates at bottom to lock joystick.

All three sides closed, bottom sheet

to place controller, CPU and UPS; with exhaust fan.

Front double door with handles and lock.Power strip in rear; Leveling Ball, Spanner 24/27 Power strip in rear; Leveling Ball, Spanner 24/27

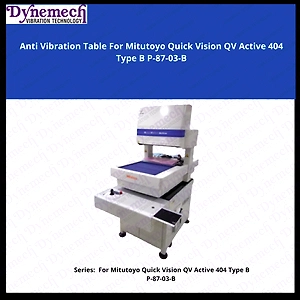

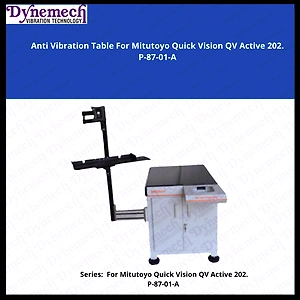

Dynemech’s Anti-Vibration Tables are ideal for Testing / Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. An anti vibration table is designed for cooperation with analytical and laboratory balances or control scales.

Our Anti-Vibration Tables are designed with Granite Surface Plate with Grade-1 accuracy for critical measuring accuracies. Also, vibration damping in our Anti-Vibration tables are provided at two locations – below the granite table top and at the bottom usinglevelling feet which can help in proper levelling of the table as well as having insulation plate to remove any unwanted vibrations. Additionally, we can select Elastomeric, Pneumatic or Spring Based Damping depending upon the vibrations present in the Testing Laboratory.
