Specifications :

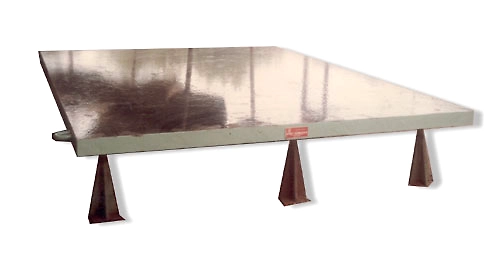

C.I. Surface Plates: These are Made of close Grained Cast Iron with adherence to necessary Hardness. They are well ribbed to minimize distortion and the depth and cross-section of the ribbing are as per IS:2285:1974/ DIN Standards. They are Stress Relieved, Machined and Handscraped Accurately And are inspected with highly sensitive precision instruments.

As per Indian Standard, ‘GT’ offers C.I. Surface Plates in 3Grades, These are Grade ‘I’, Grade ‘II’ and Grade ‘III’.

In case the of Grade ‘I’ Accuracy, The Surface Plates are Very Carefully Handscraped. In the case of Grade ‘II’ and Grade ‘III’ Plates are accurately finish machined.

‘GT’ offers Rexine Top Protection Covers along with the Surface Plates to protect the plates from Dust Particles.

Surface Plates up to size: 1000 x 1000 are provided with M.S.Handles. Larger Plates are without Handles but provided with Core Holes.

Mild Steel Fabricated Stands or C.I. Supporting Stands: Would be supplied along with ‘GT’ Surface Plates at an Extra Cost.

‘T’ SLOTS’: ‘T’ Slots, Grit Lines For Location and Tapped Holes Can be Provided at an extra cost.

SPECIAL PLATES: ‘GT’offers Welding Plates, Bending Blocks, Layout Tables, Assembly Plates, Floor Plates, and Auxillary Tables.
