Min Order Qty 1
Product not available
Ahmedabad, India
Business Operations: Manufacturer, Merchant, Service Provider
Contact us for
| range of product |

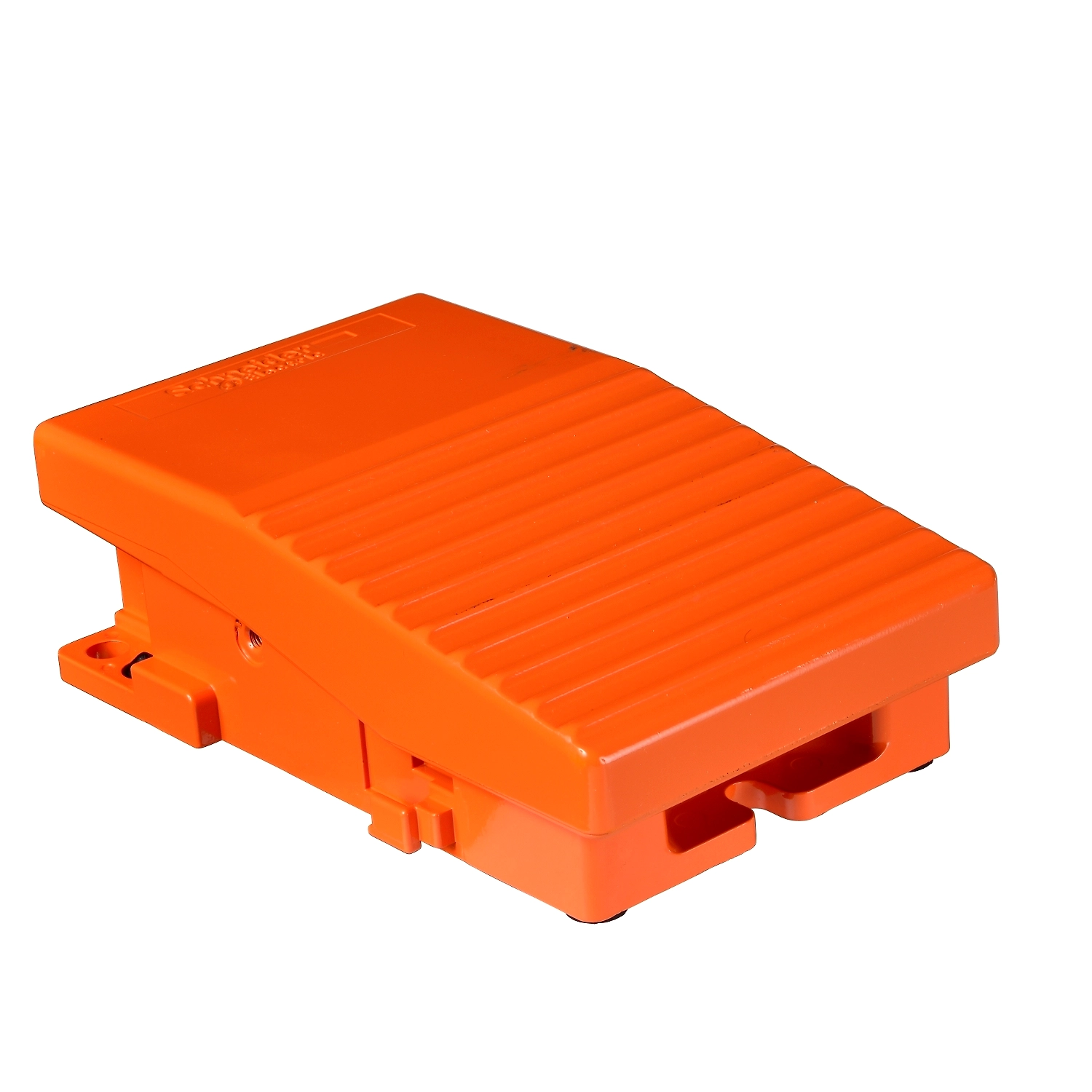

Harmony XPE
|
|
|---|---|---|
| product or component type |
Foot switch
|
|
| material |
Metal
|
|
| foot switch type |
Single foot switch
|
|
| device short name |
XPER
|
|
| protective cover |
Without
|
|
| trigger mechanism |
Without trigger mechanism
|
|
| contact operation |
2 steps
|
|
| contacts type and composition |
2 NC + 1 NO
|
|
| colour |
Orange
|
| positive opening |
With conforming to EN/IEC 60947-5-1 appendix K
|
|
|---|---|---|
| connections - terminals |
Screw clamp terminal, <= 1 x 2.5 mm² with or without cable end
Screw clamp terminal, <= 2 x 1.5 mm² with or without cable end |
|
| cable entry |
2 tapped entries for Pg 16
|
|
| marking |
II2 D-Ex tD A21 IP65 T85°C
|
|
| mechanical durability |
5000000 cycles
|
|
| [Ie] rated operational current |
3 A at 240 V, AC-15, A300
0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A |
|
| [Ui] rated insulation voltage |
300 V conforming to UL 508
500 V (pollution degree 3) conforming to EN/IEC 60947-1 500 V (pollution degree 3) conforming to NF C 20-040 group C 500 V (pollution degree 3) conforming to VDE 0110 group C 300 V conforming to CSA C22.2 No 14 |
|
| [Uimp] rated impulse withstand voltage |
EN/IEC 60947-1 6 kV
IEC 60664 6 kV |
|
| maximum resistance across terminals |
0.025 mOhm conforming to IEC 60255-7 category 3
0.025 mOhm conforming to NF C 93-050 method A |
|
| short-circuit protection |
10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
10 A cartridge fuse type gG conforming to VDE 0660-200 |
|
| width |
104 mm
|
|
| depth |
172 mm
|
|
| height |
59 mm
|
| standards |
EN 50281-1-1
IEC 61241-1 ATEX D 94/9/CE EN 50014 IEC 61241-0 |
|
|---|---|---|
| dust zone |
Zone 21 - 22
|
|
| product certifications |
INERIS 04ATEX0025
|
|
| protective treatment |
TC
|
|
| ambient air temperature for operation |
-20…60 °C
|
|
| ambient air temperature for storage |
-40…70 °C
|
|
| vibration resistance |
15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
150 gn conforming to NF E 09-031
20 gn conforming to IEC 60068-2-27 |
|
| electrical shock protection class |
Class I conforming to EN/IEC 61140
Class I conforming to NF C 20-030 |
|
| IP degree of protection |
IP66
|
| Package 1 Weight |
1.296 kg
|
|
|---|---|---|
| Package 1 Height |
0.130 dm
|
|
| Package 1 width |
1.200 dm
|
|
| Package 1 Length |
1.900 dm
|
| Warranty |
18 months
|
|---|
