Min Order Qty 1
Product not available
Ahmedabad, India
Business Operations: Manufacturer, Merchant, Service Provider
Contact us for
| range of product |

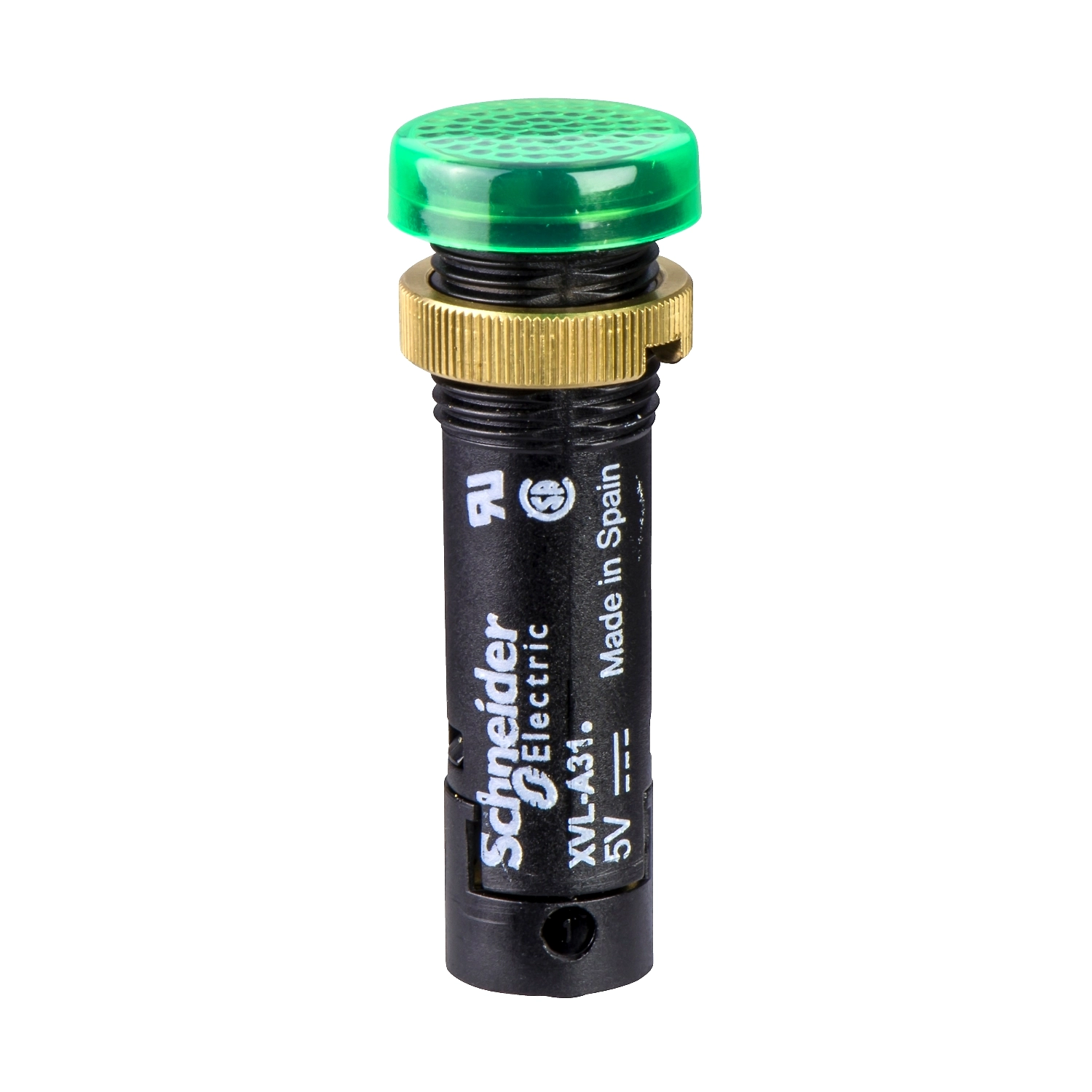

Harmony XVL
|
|
|---|---|---|
| product or component type |
LED pilot light with integral lens cap
|
|
| component name |
XVL
|
|
| mounting diameter |
12 mm
|
|
| light source |
Covered LED
|
|
| light block colour |
Green
|
|
| protection type |
Built-in by diode
Integral ballast resistor |
|
| [Us] rated supply voltage |
12 V
|
|
| IP degree of protection |
IP65 (with seal XVLZ912) conforming to IEC 60529
IP65 (with seal XVLZ912) conforming to NF C 20-010 IP40 conforming to IEC 60529 IP40 conforming to NF C 20-010 |
| supply circuit type |
DC
|
|
|---|---|---|
| connections - terminals |
Threaded connector: clamping capacity 1 x 0.2...1 x 1.5 mm²
|
|
| current consumption |
18 mA
|
|
| [Ui] rated insulation voltage |
50 V conforming to IEC 60947-1
|
|
| bulb lifespan |
100000 h
|
|
| nominal voltage limit |
0.8...1.1 Un
|
|
| terminals description ISO n°1 |
(X1-X2)PL
|
|
| height |
16 mm
|
|
| width |
16 mm
|
|
| depth |
51 mm
|
|
| net weight |
0.007 kg
|
| product certifications |
UL
CSA |
|
|---|---|---|
| protective treatment |
TC
|
|
| ambient air temperature for operation |
-25…70 °C
|
|
| ambient air temperature for storage |
-40…70 °C
|
|
| overvoltage category |
Class 3 conforming to IEC 60536
Class 3 conforming to NF C 20-030 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
6 g
|
|
| Package 1 Height |
1.8 cm
|
|
| Package 1 width |
4.8 cm
|
|
| Package 1 Length |
6.4 cm
|
|
| Unit Type of Package 2 |
BB1
|
|
| Number of Units in Package 2 |
10
|
|
| Package 2 Weight |
74 g
|
|
| Package 2 Height |
3 cm
|
|
| Package 2 width |
11 cm
|
|
| Package 2 Length |
11 cm
|
|
| Unit Type of Package 3 |
S01
|
|
| Number of Units in Package 3 |
100
|
|
| Package 3 Weight |
892 g
|
|
| Package 3 Height |
15 cm
|
|
| Package 3 width |
15 cm
|
|
| Package 3 Length |
40 cm
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
|---|---|---|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
