Epoxy Cast Resin Bushing, Current and Potential Transformers -

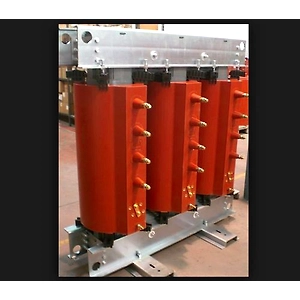

Epoxy Cast Resin Bushing, Current and Potential Transformers

ITC-HSN: 8546

255.89/NOS (Numbers)

Min Order Qty 15 NOS (Numbers)

Accept Small Orders

Fulfilment Capacity (Per Month): 1 NOS (Numbers)/month

Product not available

Manufacturer, Supplier and Exporters (Electrical Parts for Transformer and LT/HT Panels)

(Epoxy Resin Bushing and CT/PT Manufacturers)
Epoxy Bushing,
Current and Potential Transformers

JAYA ELECTRICALS

Ghaziabad, India

Business Operations: Manufacturer

Buy Now Contact Seller

Share on:

Agency Request
Contract Manufacturing
Buying Agents
Importers
Business Development Agencies

By clicking on ‘Send Trade Enquiry’, you agree to our terms & condition and user policies

Description
Business Information

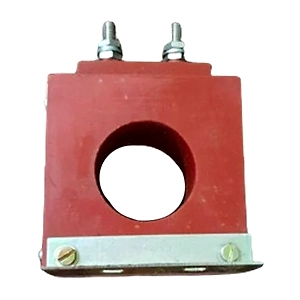

RESIN CAST CURRENT TRANSFORMER

Technical Specification As Per IS : 2705

RANGE – 11, 22 & 33 KV ACCURACY CLASS – 0.2 & 0.5

SPECIAL ACCURACY CLASS – 0.2S & 0.5S IS : 2705

General Particulars 11KV 22KV 33 KV

Highest S ystem Voltage( H.S.V.) 12 KV ( r.m.s.) 24 KV ( r.m.s.) 36 KV (r.m.s.)

Power frequency dr y/ wet withstand

voltage on primary winding for one minute

28 KV ( r.m.s.)

50 KV ( r.m.s.)

70 KV ( r.m.s.)

Lightning Impulse withstand voltage

(1.2 x 50 µ s ) 75 KV ( r.m.s.) 125 KV ( r.m.s.) 170 KV ( r.m.s.)

PD measuring Voltage / Permissible

Voltage 7.6/50 15.2/50 23.0/50

Specific Particulars

Rated Transformation Ratio As per customer requirement (in Amp.)

Rated Primary Current Upto 2000 Amp.

Rated Secondary Current 1 Amp. 5 Amp. 0.577 Amp.

Short Time Thermal Current (Ith) As per customer requirement.

In general CT is to be specified with STF of 100 for 1 Sec. or STC (lth) equal to the system fault level whichever is lower. KA ( r.m.s. )

Short Time Dynamic Current 2.5 X Ith KA (Peak)

Number of Cores Upto 3 cores

Output Burden Upto 60VA, 0.8 pf Lagging

Accuracy Class For Metering :

0.2S, 0.2, 0.5S, 0.5, 1.0 & 3.00.

For Protection:

5P, 10P, 15P & PS

IAF, ALF, Knee Point Voltage, Exciting Current & Resistance As per customer requirement / Design Constraints

Type of construction As Per Panel Conditions(Customer Requirement)

Technical Specification As Per IS : 2705

General Particulars 11KV 22KV 33 KV 66 KV

Highest S ystem

Voltage( H.S.V.) 12 KV ( r.m.s.) 24 KV ( r.m.s.) 36 KV (r.m.s.) 72 KV (r.m.s.)

Power frequency dr y/

wet withstand voltage on primary winding

for one minute

28 KV ( r.m.s.)

50 KV ( r.m.s.)

70 KV ( r.m.s.)

150 KV ( r.m.s.)

Lightning Impulse

withstand voltage (1.2 x 50 µ s )

75 KV ( r.m.s.)

125 KV ( r.m.s.)

170 KV ( r.m.s.)

350 KV ( r.m.s.)

Specific Particulars

Rated Transformation

Ratio As per customer requirement (in Amp.)

Rated Primary Current Upto 2000 Amp.

Rated Secondary

Current 1 Amp. 5 Amp. 0.577 Amp.

Short Time Thermal

Current (Ith) As per customer requirement.

In general CT is to be specified with STF of 100 for 1 Sec. or STC (lth) equal to the system fault level whichever is lower. KA ( r.m.s. )

Short Time Dynamic

Current 2.5 X Ith KA (Peak)

Number of Cores Upto 5 cores

Output Burden Upto 60VA, 0.8 pf Lagging

Accuracy Class For Metering :

0.2S, 0.2, 0.5S, 0.5, 1.0 & 3.00. For Protection:

5P, 10P, 15P & PS

IAF, ALF, Knee Point

Voltage, Exciting

Current & Resistance

As per customer requirement / Design Constraints

Type of construction Dead / Bottom Tank or Live / Top Tank

POTENTIAL TRANSFORMER

APPLICATION – Direct measurement of voltage in high voltage & high current system is not possible because of difficulty in electrical isolation of measuring instruments. Because of its high value, it is also not possible to use voltage directly to the system, so that Potential transformer are used to step down the high system voltage into low system measuring voltage with their proportionate ratio. due to this it is possible to measure high system voltage by using standard measuring instruments & relays, also its isolate meters, relays from high voltage systems and also to sense abnormalities in voltage & give signal to protective relay to isolate the defective system.

RESIN CAST POTENTIAL TRANSFORMER

RANGE – 11, 22 & 33 KV ACCURACY CLASS – 0.2 & 0.5

SPECIAL ACCURACY CLASS – 0.2S & 0.5S IS : 3156

Technical Specification As Per IS : 3156

General Particulars 11KV 22KV 33 KV

Highest S ystem Voltage( H.S.V.) 12 KV ( r.m.s.) 24 KV ( r.m.s.) 36 KV (r.m.s.)

Power frequency dr y/ wet withstand

voltage on primary winding for one minute

28 KV ( r.m.s.)

50 KV ( r.m.s.)

70 KV ( r.m.s.)

Lightning Impulse withstand Voltage (

1.2 x 50 µ s )

75 KV ( r.m.s.)

125 KV ( r.m.s.)

170 KV ( r.m.s.)

PD measuring Voltage / Permissible

Voltage

7.6/50

15.2/50

23.0/50

Specific Particulars

Number of Phases 3 or 1 unearthed or earthed

Rated Transformation Voltage Ratio As per customer requirement

Number of Secondary Windings Upto 3

Output Burden Upto 100VA

Accuracy Class For Metering : 0.2, 0.5 & 1.0

For Protection: 3P, 6P

Voltage Factor 1.2 Continuous & 1.5 for 30 Sec or 1.9 for 30 Sec or 1.9 for

8 hours

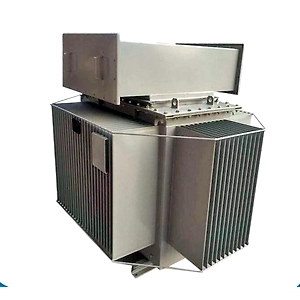

OIL COOLED POTENTIAL TRANSFORMERS

Technical Specification As Per IS : 3156

General Particulars 11KV 22KV 33 KV 66 KV

Highest S ystem

12 KV ( r.m.s.)

24 KV ( r.m.s.)

36 KV (r.m.s.)

72 KV (r.m.s.)

Voltage( H.S.V.)

Power frequency

28 KV ( r.m.s.)

50 KV ( r.m.s.)

70 KV ( r.m.s.)

150 KV ( r.m.s.)

dry/ wet withstand

voltage on primary winding for one

minute

Lightning Impulse

75 KV ( r.m.s.)

125 KV ( r.m.s.)

170 KV ( r.m.s.)

350 KV ( r.m.s.)

withstand Voltage (

1.2 x 50 µ s )

Specific Particulars

Number of Phases 3 or 1 unearthed or earthed

Rated

As per customer requirement

Transformation

Voltage Ratio

Number of Upto 3

Secondary Windings

Output Burden Upto 500VA

Accuracy Class For Metering : 0.2, 0.5,1.0 & 3.0

For Protection: 3P, 6P

Voltage Factor 1.2 Continuous & 1.5 for 30 Sec or 1.9 for 30 Sec or 1.9 for 8 hours
