“NOVA” CATHODIC DISBONDMENT TESTER – HMI TOUCH SCREEN MODEL - 4 CHANNEL

SALIENT FEATURES :

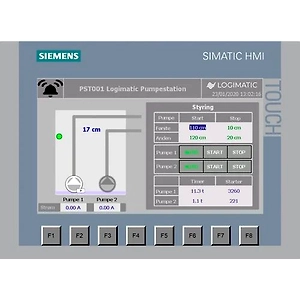

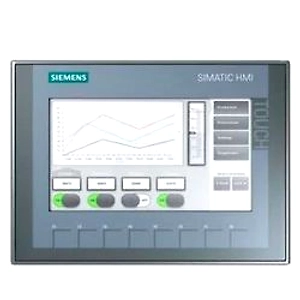

• Model: HMI (Touch Screen) Model
• Each Channel with in-built Data Logging Interface
• Data Logging available with various features like….
• Alphanumeric Data with real time
• Real time Trend Graphical Display
• History Trend Graphical Display
• Each channel can be configured for -1.5V or -3.5V.
• (Negative sign indicates apply voltage [Negative with respect to the Calomel Reference Electrode] to the test specimen.)
• Each channel can be set for required timer in min./hr./day.

Digital Display of…

                       Process Value PV

                       Set Value SV

                       mA

                       Timer Display

                       Display of Day & Time.

             Provided with factory Test Report for each channel.

             Provided with Calibration Certificate for each channel with traceability.

Complete with…..

Pen Drive for Data Recording.

RS 485 for Data Recording interface.

Built-in Panel Cooling Fan.

Acrylic Cell [Test Vessel] 75 ± 3mm dia x 90/100mm height with Lid – 4 Nos.

TITANIUM ANODE WITH PLATINUM WIRE 0.8MM DIA ELECTRODE - 4 Nos.

REFERENCE ELECTRODE Ag/Agcl or HgHgcl2 GLASS - 4 Nos.

CONNECTION CABLE - 4 Nos.
